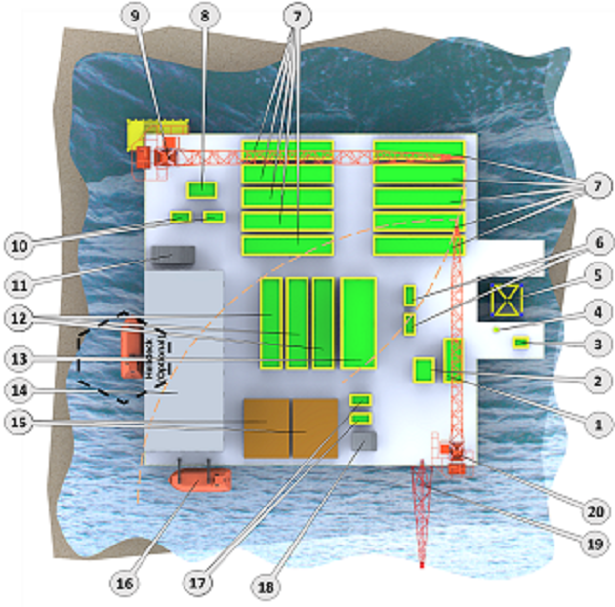

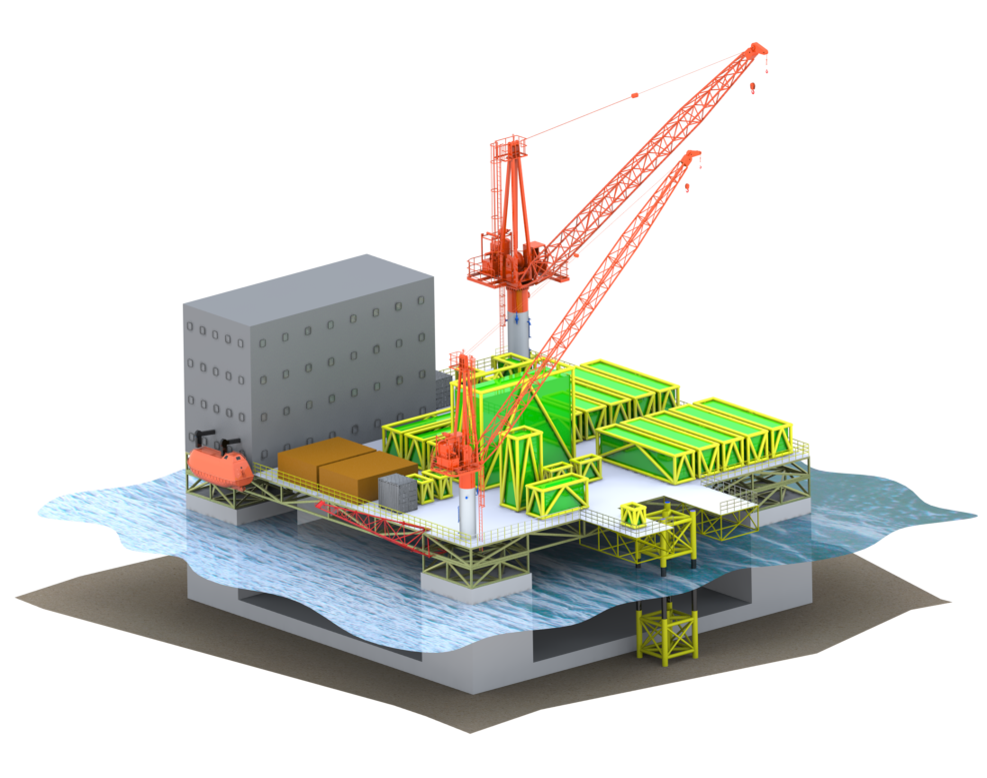

WELLHEAD PRODUCTION PLATFORM (SMCP)

Hull: 45m x 45m
Mat: 45m x 45m
Water Depth: 9m


Key Equipment

1. Inlet Separator
2. 2nd Stage Surge Vessel
3. Inlet Manifold & SDVs
4. ESD Panel
5. Conductor Slots
6. 2 x Transfer Pumps
7. 10x Oil Storage Tanks
8. Metering Skid
9. 50T Crane
10. 2 x Export Pumps
11. Lab Cabin
12. 3 x Gas Storage
13. CNG Compressor
14. 50 POB Accommodation
15. 2 x Generators
16. 2 x Life Boats
17. 2 x Export Pumps
18. Workshop Container
19. Blowdown Vent/Flare
20. 25T Crane

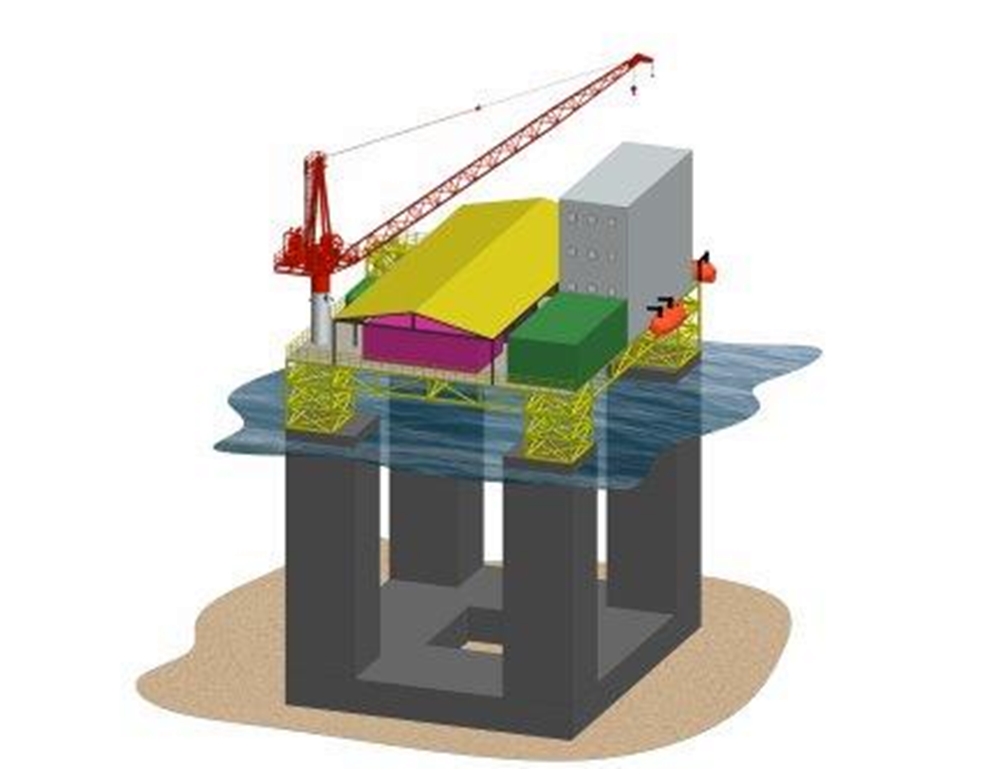

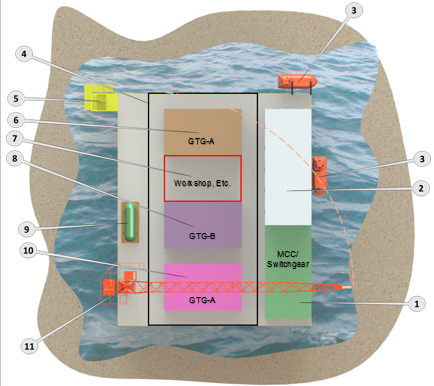

POWER GENERATION PLATFORM (SMCP)

Hull: 30m x 25m

Mat: 30m x 25m
Moon-pool Size: 10m x 8m
Column Size: 6m x 6m
Air Gap: 5m
Water Depth: 23m

Key Equipment

1. MCC/Switchgear
2. 5 - 8 POB Accomodation
3. 2 x 15 Man Life Boats
4. GTG Shelter
5. Boat Landing
6. GTG-C
7. Workshop, etc
8. GTG-B
9. Separator
10. GTG-A
11. 20T Crane w/Boom Length max. 35m Model #5/10k (Favelle Favco)
